Οθόνη φίλτρου πολυεστέρας σπειροειδούς
  • Οθόνη φίλτρου πολυεστέρας σπειροειδούς Οθόνη φίλτρου πολυεστέρας σπειροειδούς
  • Οθόνη φίλτρου πολυεστέρας σπειροειδούς Οθόνη φίλτρου πολυεστέρας σπειροειδούς

Οθόνη φίλτρου πολυεστέρας σπειροειδούς

Η προχωρημένη οθόνη του SMCC Polyester Spiral Filter διαθέτει υψηλή αντοχή, φθορά, θερμοκρασία και αντοχή στη διάβρωση. Η οθόνη φίλτρου πολυεστέρα χρησιμοποιείται ευρέως στην επεξεργασία τροφίμων, στα φαρμακευτικά προϊόντα, στον άνθρακα, στον μεταλλεύμα, στον χάλυβα, στις χημικές πρώτες ύλες κλπ. Κατά τη διάρκεια της διαδικασίας μεταφοράς των υλικών, η οθόνη φίλτρου πολυεστέρα μπορεί να φιλτράρει αποτελεσματικά τις ακαθαρσίες και τα σωματίδια στα υλικά, να βελτιώσει την καθαρότητα των υλικών και να εξασφαλίσει τη σταθερότητα και την αποτελεσματικότητα της μεταφοράς.

Αποστολή Ερώτησης

περιγραφή προϊόντος

Product Feature

SMCC high quality Polyester spiral filter screen have high tensile and tear strength and good wear resistance, and can withstand large material loads and impact forces, without being easily damaged or broken. Polyester spiral filter screens can resist friction and wear between materials and conveyor belts, thereby extending the service life of the conveyor belt. Due to the high temperature resistance and corrosion resistance of polyester materials, polyester spiral filter screen can maintain stable physical and chemical properties in high-temperature environments, resist the erosion of acids, alkali, and other chemical substances, and are not easily deformed or aged.

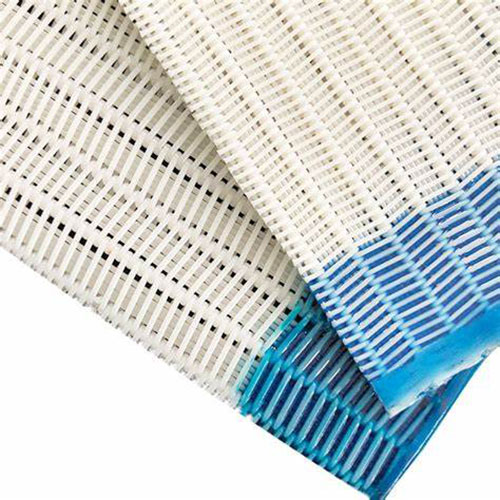

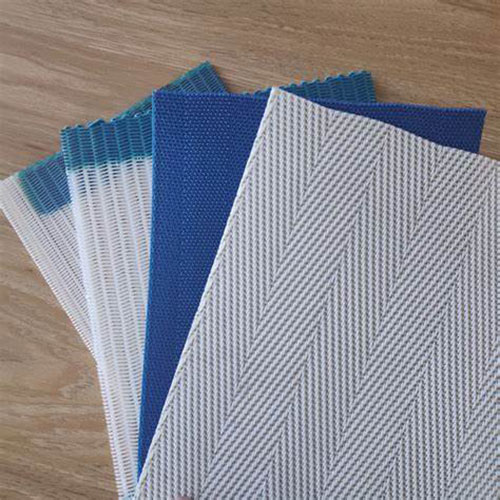

Polyester Spiral Filter Screen   (Polyester Spiral Dryer Mesh  / Mesh Belt) is a high performance industrial filtration material made from high strength polyester fiber and specially weaving process for harsh working conditions. With its unique spiral ring structure, high air permeability and customisable characteristics, it is widely used in papermaking, food processing, wastewater treatment and mining, and is an ideal substitute for traditional canvas and dry blanket.


Product Parameter


Type
Ring diameter (mm)
Filament diameter (spiral/connection/filling)
Tensile strength (N/cm)
Weight (kg/m²)
Thickness (mm)
Permeability (m³/m²h)
Scenario
Small ring 5080A1
5.2
0.5/0.8/0.60 * 3
1800
1.5 2.1 4480 Cultural paper, light packaging
Central 6890B3
7.15
0.68/0.9/flat wire 2.1 * 0.80
2000
1.8
2.45
9000
Highly permeable drying, slurry boards
Big Ring 9090A1
8
0.9/0.9/0.90 * 3
2300
2.3
3.03
7500
Heavy duty cardboard, coal mine
Alkali-resistant PA90110A2
10
0.9/1.1/1.2 * 3
2000
2.25
3.15
6240
Strongly corrosive environments

Note: Customised parameters are supported, including filament diameter (0.5-1.3mm), air permeability (2000-10000m³/m²h), temperature resistance grade and special features such as conductive carbon filaments.

Product Advantages

Polyester Spiral Filter Screen


Product Application

Polyester spiral filter screen is mainly used for filtering materials during transportation, completing the screening and separation of materials during transportation, saving space and improving production efficiency. The filter mesh has high tensile and fatigue strength and stability, ensuring efficient operation under various complex environmental conditions.


Hot Tags: Οθόνη φίλτρου πολυεστέρα, πλέγμα φίλτρου σπειροειδούς, προμηθευτής οθόνης της Κίνας, κατασκευαστής μηχανών αστέρων, οθόνη διήθησης υγρού
